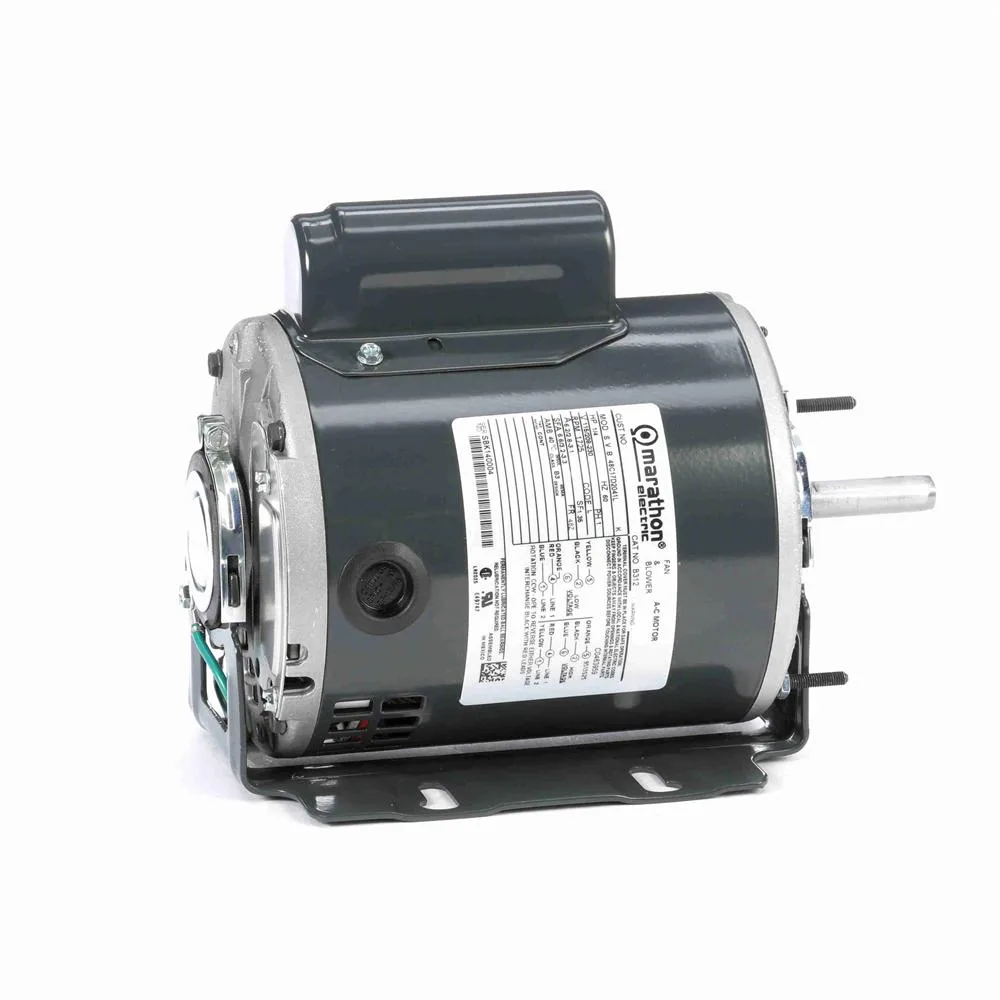

Marathon B312 Capacitor Start Blower Motor, 5-5/8" Dia., 1/4 HP, 1725 RPM
Marathon B312 capacitor start blower motor, 5-5/8" diameter, 1/4 HP, 1725 RPM, 115/208/230 V, single phase.
- Motor type
- Capacitor start
- Power
- 1/4 HP
- Speed
- 1725 RPM
- Voltage
- 115/208/230 V
- Delivery to every governorate. Timing is confirmed with your quotation.
- Not sure it fits? Send the unit nameplate or the old part number and we will match it for you.
- Prefer to talk? Call +968 9762 8602
Description
Looking for a capacitor start blower motor? The Marathon B312 Capacitor Start Blower Motor, 5-5/8" Dia., 1/4 HP, 1725 RPM is available through our online quotation service anywhere in Oman.
A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: Capacitor start. Power: 1/4 HP. Speed: 1725 RPM. Voltage: 115/208/230 V, 60 Hz, single phase. Current: 6.2/2.8-3.1 A. Frame: 48Z. Motor diameter: 5-5/8" (142.88 mm). Shaft: 1/2" (12.7 mm) diameter, 1.88" (47.75 mm) long. Mounting: base / stud. Part code: B312. Manufacturer model number: 048C17D2041.
Before you order: four quick checks
- Match the dimensions: motor diameter 5-5/8" (142.88 mm), shaft 1/2" (12.7 mm) diameter and 1.88" (47.75 mm) long, frame 48Z, mounting base / stud. Compare them with your old motor before you order.
- Check the electrical data: 1/4 HP, 1725 RPM, 115/208/230 V, 60 Hz, single phase, 6.2/2.8-3.1 A. They must match the nameplate of your old motor.
- Check the rotation and the mounting position: rotation reversible, mounting orientation horizontal, 1 speed.
- Isolate and lock out the power before working on a motor, and discharge its capacitor before you touch the terminals. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.
Need it delivered to Sur, Duqm and Mirbat, or anywhere else in Oman? Ask for a quote for this motor; we reply with the price, availability and delivery time. More fan and blower motors and Marathon motors are on the site.
Specifications
| Motor type | Capacitor start |
|---|---|
| Power | 1/4 HP |
| Speed | 1725 RPM |
| Voltage | 115/208/230 V |
| Current | 6.2/2.8-3.1 A |
| Phase | 1 |
| Frequency | 60 Hz |
| Number of speeds | 1 |
| Frame | 48Z |
| Motor diameter | 5-5/8" (142.88 mm) |
| Shaft diameter | 1/2" (12.7 mm) |
| Shaft length | 1.88" (47.75 mm) |
| Overall length | 9.72" (246.89 mm) |
| Mounting | Base / stud |
| Mounting orientation | Horizontal |
| Rotation | Reversible |
| Enclosure type | ODP (open dripproof) |
| Enclosure material | Steel |
| Bearings | Ball |
| Insulation class | Class B |
| Service factor | 1.35 |
| Efficiency | 52.5% |
| Duty cycle | Continuous |
| Maximum ambient temperature | 40 °C |
| Manufacturer model number | 048C17D2041 |
| SKU | FM-019 |
| Part no. | B312 |
| Brand | Marathon |
