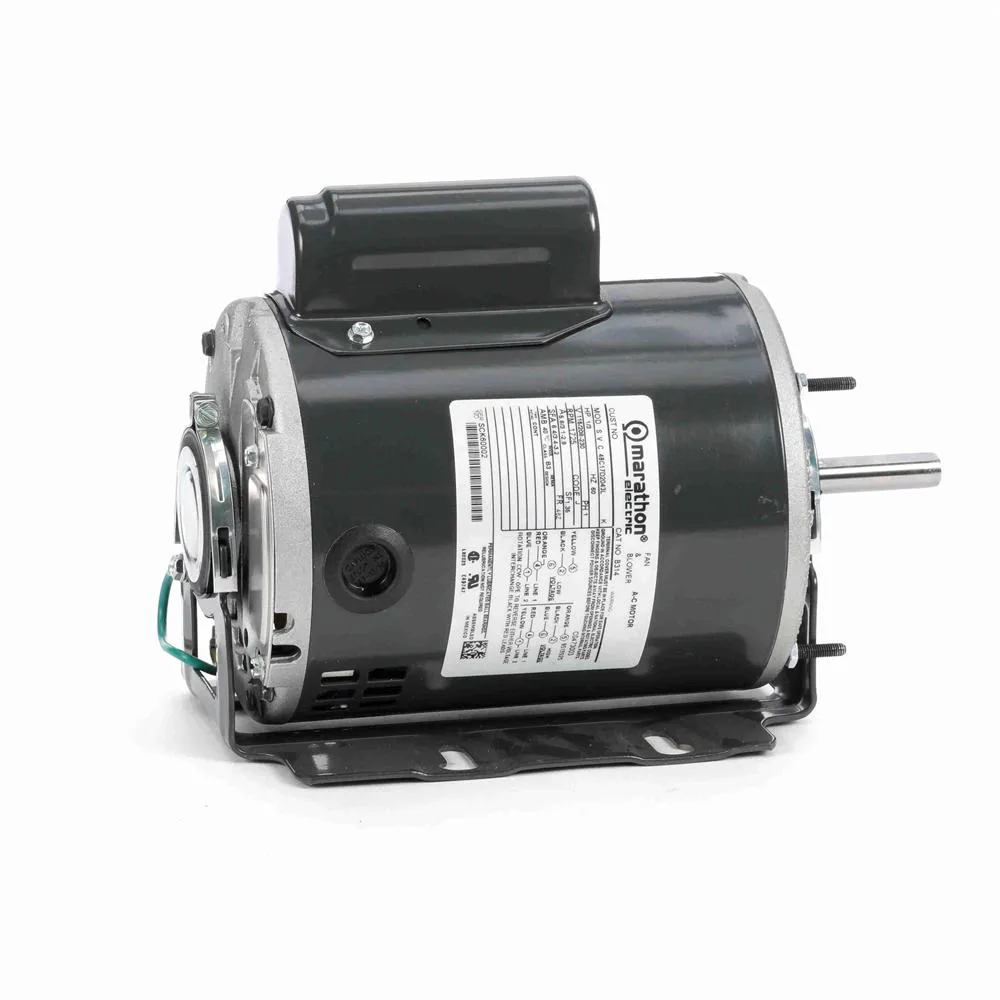

Marathon B314 Capacitor Start Blower Motor, 5-5/8" Dia., 1/3 HP, 1725 RPM

The Marathon B314 Capacitor Start Blower Motor, 5-5/8" Dia., 1/3 HP, 1725 RPM is part of our range of Marathon blower motors, delivered throughout Oman.

A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: Capacitor start. Power: 1/3 HP. Speed: 1725 RPM. Voltage: 115/208/230 V, 60 Hz, single phase. Current: 5.8/3.1-2.9 A. Frame: 48Z. Motor diameter: 5-5/8" (142.88 mm). Shaft: 1/2" (12.7 mm) diameter, 1.97" (50.04 mm) long. Mounting: base / stud. Part code: B314. Manufacturer model number: 048C17D2043.

Before you order: four quick checks

• Match the dimensions: motor diameter 5-5/8" (142.88 mm), shaft 1/2" (12.7 mm) diameter and 1.97" (50.04 mm) long, frame 48Z, mounting base / stud. Compare them with your old motor before you order.
• Check the electrical data: 1/3 HP, 1725 RPM, 115/208/230 V, 60 Hz, single phase, 5.8/3.1-2.9 A. They must match the nameplate of your old motor.
• Check the rotation and the mounting position: rotation reversible, mounting orientation horizontal, 1 speed.
• Isolate and lock out the power before working on a motor, and discharge its capacitor before you touch the terminals. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.

Order from anywhere in Oman, including Seeb, Bawshar and Manah. Add this motor to your quotation list and send the nameplate of your old one; we confirm availability, price and delivery. See more Marathon motors or browse all fan and blower motors.
