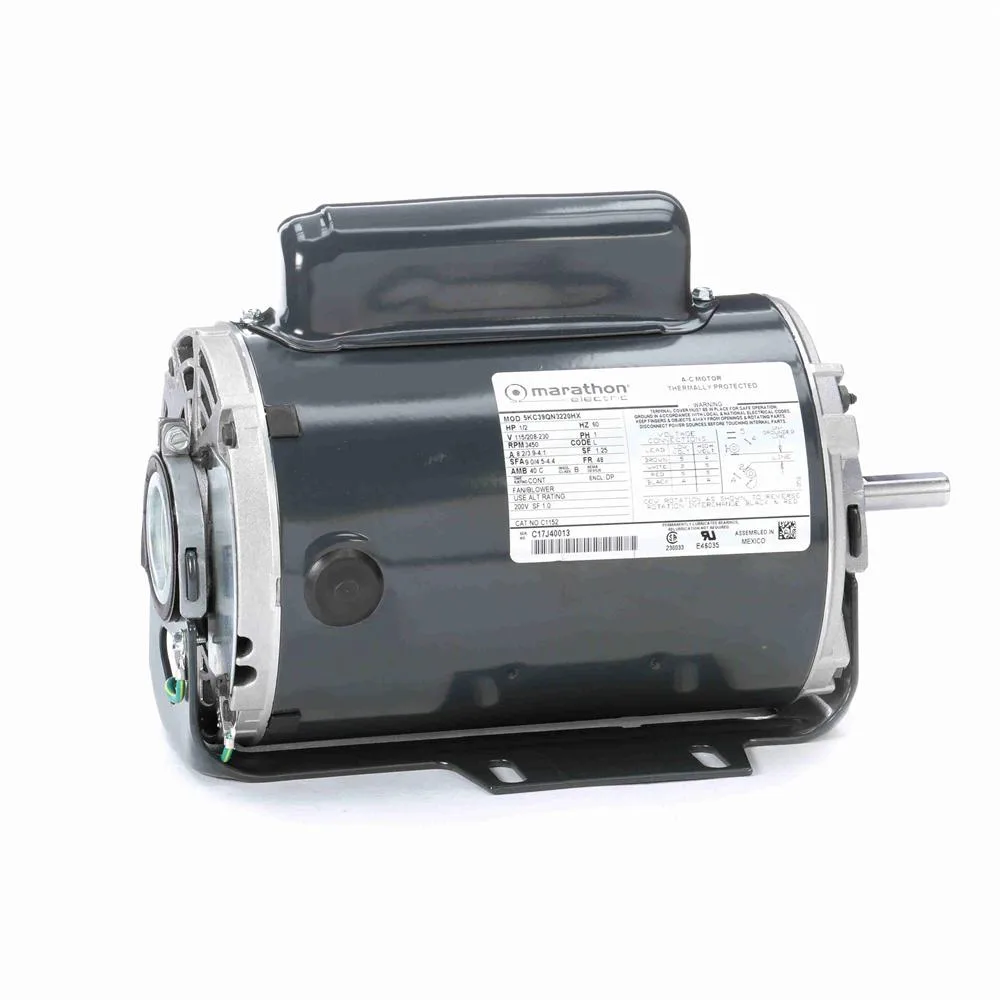

Marathon C1152 Capacitor Start Blower Motor, 5-5/8" Dia., 1/2 HP, 3450 RPM

Looking for a capacitor start blower motor? The Marathon C1152 Capacitor Start Blower Motor, 5-5/8" Dia., 1/2 HP, 3450 RPM is available through our online quotation service anywhere in Oman.

A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: Capacitor start. Power: 1/2 HP. Speed: 3450 RPM. Voltage: 115/208/230 V, 60 Hz, single phase. Current: 8.2/3.9-4.1 A. Frame: 48. Motor diameter: 5-5/8" (142.88 mm). Shaft: 1/2" (12.7 mm) diameter, 1.5" (38.1 mm) long. Mounting: base. Part code: C1152. Manufacturer model number: 5KC39QN3220X.

Before you order: four quick checks

• Match the dimensions: motor diameter 5-5/8" (142.88 mm), shaft 1/2" (12.7 mm) diameter and 1.5" (38.1 mm) long, frame 48, mounting base. Compare them with your old motor before you order.
• Check the electrical data: 1/2 HP, 3450 RPM, 115/208/230 V, 60 Hz, single phase, 8.2/3.9-4.1 A. They must match the nameplate of your old motor.
• Check the rotation and the mounting position: rotation reversible, mounting orientation any, 1 speed.
• Isolate and lock out the power before working on a motor, and discharge its capacitor before you touch the terminals. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.

Need it delivered to Sur, Duqm and Mirbat, or anywhere else in Oman? Ask for a quote for this motor; we reply with the price, availability and delivery time. More fan and blower motors and Marathon motors are on the site.
