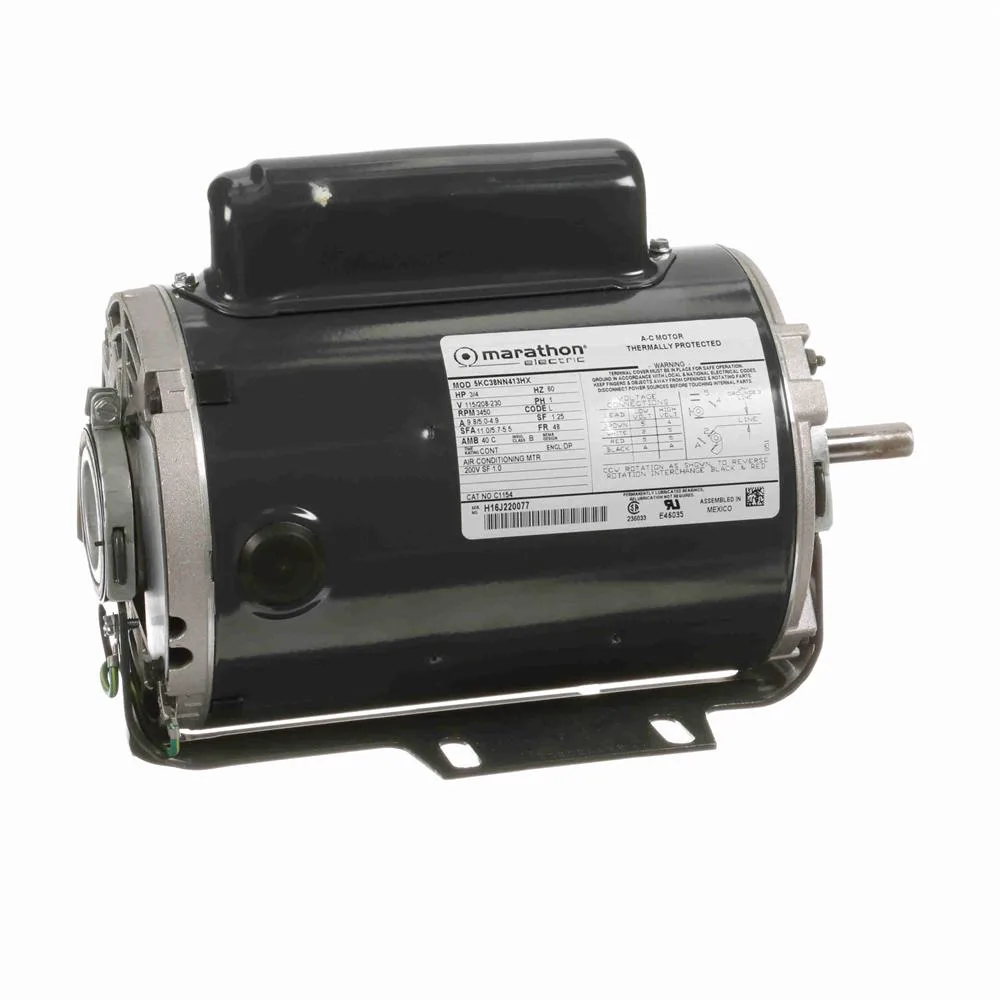

Marathon C1154 Capacitor Start Blower Motor, 5-5/8" Dia., 3/4 HP, 3450 RPM

Get the right motor for your equipment with the Marathon C1154 Capacitor Start Blower Motor, 5-5/8" Dia., 3/4 HP, 3450 RPM. This capacitor start blower motor is part of our range of Marathon motors, and we deliver to Saham, Al Hamra, Ibra and the rest of Oman.

A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: Capacitor start. Power: 3/4 HP. Speed: 3450 RPM. Voltage: 115/208/230 V, 60 Hz, single phase. Current: 9.8/5.0-4.9 A. Frame: 48. Motor diameter: 5-5/8" (142.88 mm). Shaft: 1/2" (12.7 mm) diameter, 1.5" (38.1 mm) long. Mounting: base. Part code: C1154. Manufacturer model number: 5KC38NN413X.

Before you order: four quick checks

• Match the dimensions: motor diameter 5-5/8" (142.88 mm), shaft 1/2" (12.7 mm) diameter and 1.5" (38.1 mm) long, frame 48, mounting base. Compare them with your old motor before you order.
• Check the electrical data: 3/4 HP, 3450 RPM, 115/208/230 V, 60 Hz, single phase, 9.8/5.0-4.9 A. They must match the nameplate of your old motor.
• Check the rotation and the mounting position: rotation reversible, mounting orientation any, 1 speed.
• Isolate and lock out the power before working on a motor, and discharge its capacitor before you touch the terminals. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.

We supply Marathon motors and fan and blower motors to Saham, Al Hamra, Ibra and every governorate of Oman. Add this motor to your quote or message us on WhatsApp, and we will reply with the price and delivery time.
