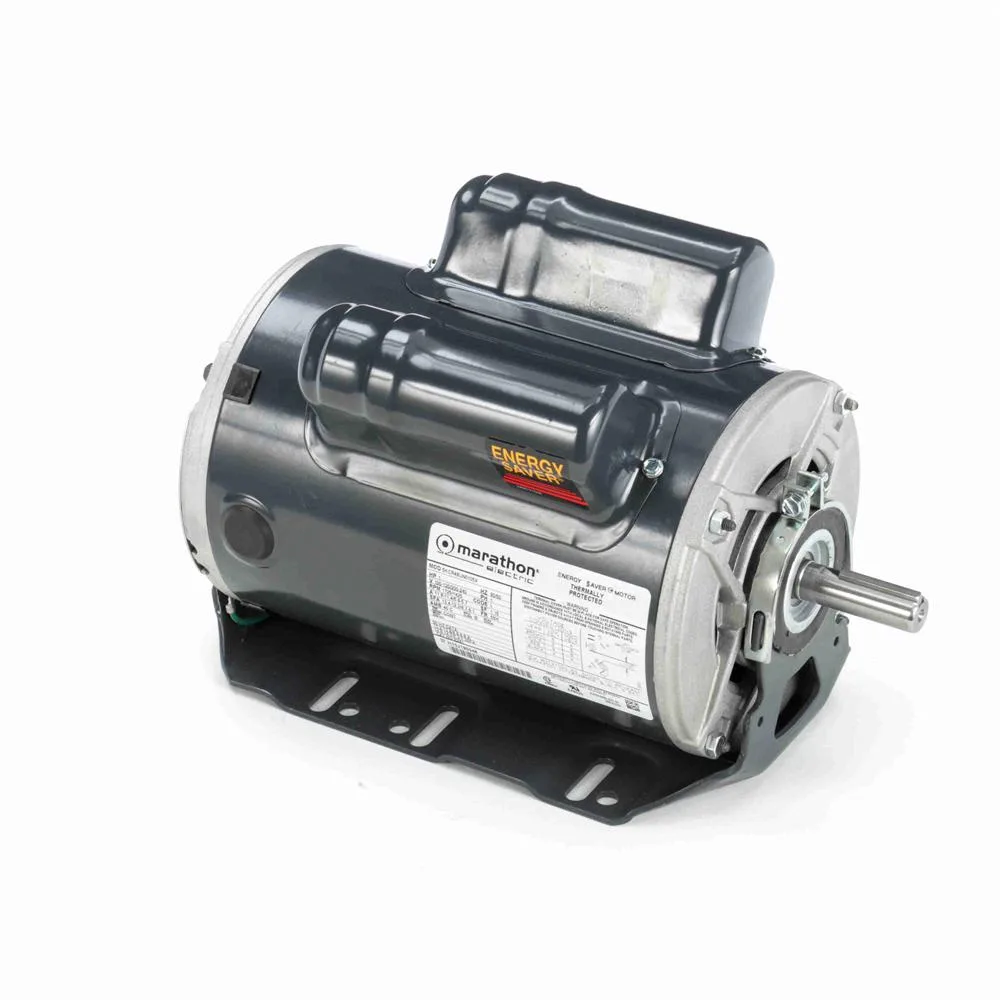

Marathon E281 Capacitor Start/Run Blower Motor, 6-1/2" Dia., 1 HP, 1725 RPM
Marathon E281 capacitor start / capacitor run blower motor, 6-1/2" diameter, 1 HP, 1725 RPM, 100/120/200/240 V, single phase.
- Motor type
- Capacitor start / capacitor run
- Power
- 1 HP
- Speed
- 1725 RPM
- Voltage
- 100/120/200/240 V
- Delivery to every governorate. Timing is confirmed with your quotation.
- Not sure it fits? Send the unit nameplate or the old part number and we will match it for you.
- Prefer to talk? Call +968 9762 8602
Description
Get the right motor for your equipment with the Marathon E281 Capacitor Start/Run Blower Motor, 6-1/2" Dia., 1 HP, 1725 RPM. This capacitor start / capacitor run blower motor is part of our range of Marathon motors, and we deliver to Al Buraimi, Haima, Muscat and the rest of Oman.
A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: Capacitor start / capacitor run. Power: 1 HP. Speed: 1725 RPM. Voltage: 100/120/200/240 V, 60 Hz, single phase. Current: 11.8-11.4/5.9-5.7 A. Frame: 56H. Motor diameter: 6-1/2" (165.1 mm). Shaft: 5/8" (15.88 mm) diameter, 1.88" (47.75 mm) long. Mounting: base. Part code: E281. Manufacturer model number: 5KCR48UN0105X.
Before you order: four quick checks
- Match the dimensions: motor diameter 6-1/2" (165.1 mm), shaft 5/8" (15.88 mm) diameter and 1.88" (47.75 mm) long, frame 56H, mounting base. Compare them with your old motor before you order.
- Check the electrical data: 1 HP, 1725 RPM, 100/120/200/240 V, 60 Hz, single phase, 11.8-11.4/5.9-5.7 A. They must match the nameplate of your old motor.
- Check the rotation and the mounting position: rotation reversible, mounting orientation any, 1 speed.
- Isolate and lock out the power before working on a motor, and discharge its capacitor before you touch the terminals. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.
Our team delivers blower motors to Al Buraimi, Haima, Muscat and all other areas of Oman. Request a quote online or on WhatsApp. You can also browse other Marathon motors and our full range of fan and blower motors.
Specifications
| Motor type | Capacitor start / capacitor run |
|---|---|
| Power | 1 HP |
| Speed | 1725 RPM |
| Voltage | 100/120/200/240 V |
| Current | 11.8-11.4/5.9-5.7 A |
| Phase | 1 |
| Frequency | 60 Hz |
| Number of speeds | 1 |
| Frame | 56H |
| Motor diameter | 6-1/2" (165.1 mm) |
| Shaft diameter | 5/8" (15.88 mm) |
| Shaft length | 1.88" (47.75 mm) |
| Motor shell length | 8.43" (214.12 mm) |
| Overall length | 12.66" (321.56 mm) |
| Mounting | Base |
| Mounting orientation | Any |
| Rotation | Reversible |
| Enclosure type | ODP (open dripproof) |
| Enclosure material | Steel |
| Bearings | Ball |
| Insulation class | Class B |
| Service factor | 1.15 |
| Efficiency | 77.4% |
| Duty cycle | Continuous |
| Maximum ambient temperature | 40 °C |
| Thermal protection | Automatic |
| Manufacturer model number | 5KCR48UN0105X |
| SKU | FM-192 |
| Part no. | E281 |
| Brand | Marathon |
