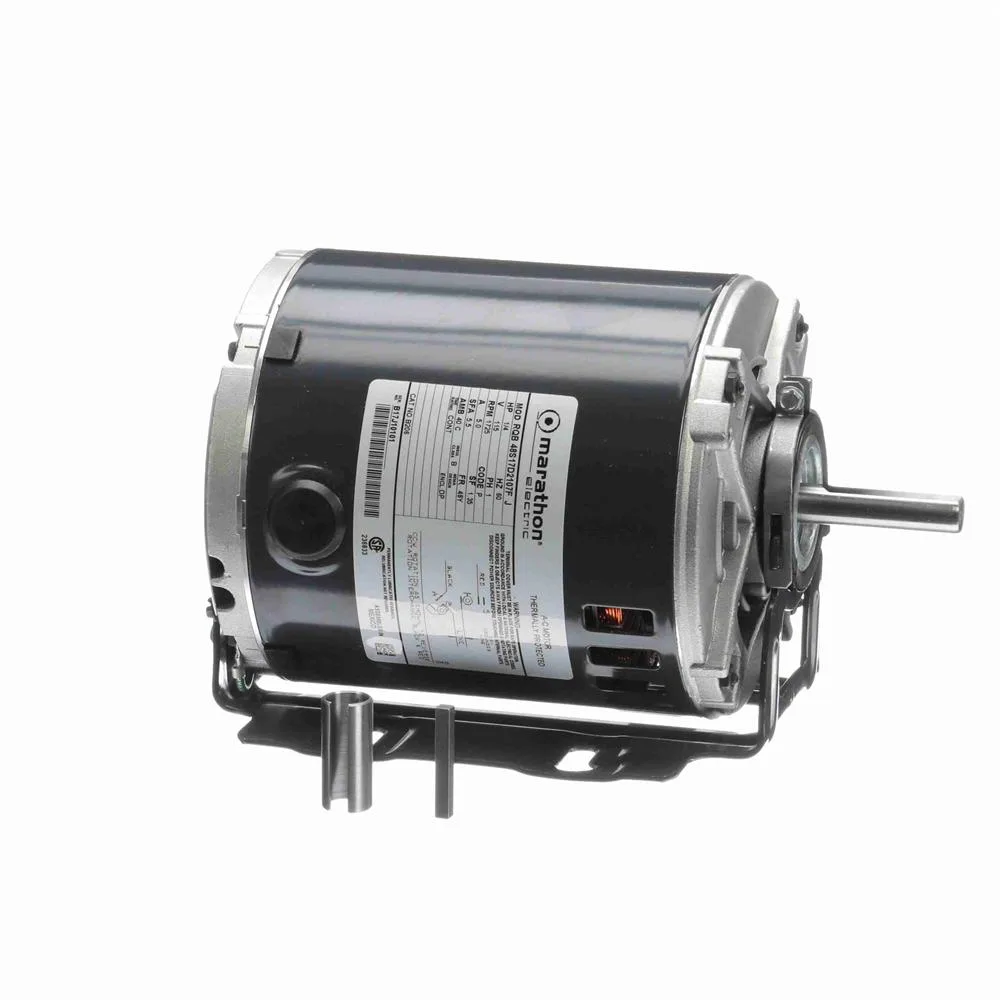

Marathon H114 Split Phase Blower Motor, 5-5/8" Dia., 1/3 HP, 3450 RPM
Marathon H114 split phase blower motor, 5-5/8" diameter, 1/3 HP, 3450 RPM, 115 V, single phase.
- Motor type
- Split phase
- Power
- 1/3 HP
- Speed
- 3450 RPM
- Voltage
- 115 V
- Delivery to every governorate. Timing is confirmed with your quotation.
- Not sure it fits? Send the unit nameplate or the old part number and we will match it for you.
- Prefer to talk? Call +968 9762 8602
Description
Need a split phase blower motor? Request a quote for the Marathon H114 Split Phase Blower Motor, 5-5/8" Dia., 1/3 HP, 3450 RPM. We supply Marathon motors and HVAC spare parts across Oman.
A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: Split phase. Power: 1/3 HP. Speed: 3450 RPM. Voltage: 115 V, 60 Hz, single phase. Current: 5.6 A. Frame: 48. Motor diameter: 5-5/8" (142.88 mm). Shaft: 1/2" (12.7 mm) diameter, 1.5" (38.1 mm) long. Mounting: base. Part code: H114. Manufacturer model number: 5KH35FN124.
Before you order: four quick checks
- Match the dimensions: motor diameter 5-5/8" (142.88 mm), shaft 1/2" (12.7 mm) diameter and 1.5" (38.1 mm) long, frame 48, mounting base. Compare them with your old motor before you order.
- Check the electrical data: 1/3 HP, 3450 RPM, 115 V, 60 Hz, single phase, 5.6 A. They must match the nameplate of your old motor.
- Check the rotation and the mounting position: rotation reversible, mounting orientation any, 1 speed.
- Isolate and lock out the power before working on a motor. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.
We supply Marathon motors and fan and blower motors to Bahla, Ibri, Quriyat and every governorate of Oman. Add this motor to your quote or message us on WhatsApp, and we will reply with the price and delivery time.
Specifications
| Motor type | Split phase |
|---|---|
| Power | 1/3 HP |
| Speed | 3450 RPM |
| Voltage | 115 V |
| Current | 5.6 A |
| Phase | 1 |
| Frequency | 60 Hz |
| Number of speeds | 1 |
| Frame | 48 |
| Motor diameter | 5-5/8" (142.88 mm) |
| Shaft diameter | 1/2" (12.7 mm) |
| Shaft length | 1.5" (38.1 mm) |
| Motor shell length | 5.79" (147.07 mm) |
| Overall length | 9.57" (243.08 mm) |
| Mounting | Base |
| Mounting orientation | Any |
| Rotation | Reversible |
| Enclosure type | ODP (open dripproof) |
| Enclosure material | Steel |
| Bearings | Ball |
| Insulation class | Class B |
| Service factor | 1.35 |
| Efficiency | 52.5% |
| Duty cycle | Continuous |
| Maximum ambient temperature | 40 °C |
| Manufacturer model number | 5KH35FN124 |
| SKU | FM-226 |
| Part no. | H114 |
| Brand | Marathon |
