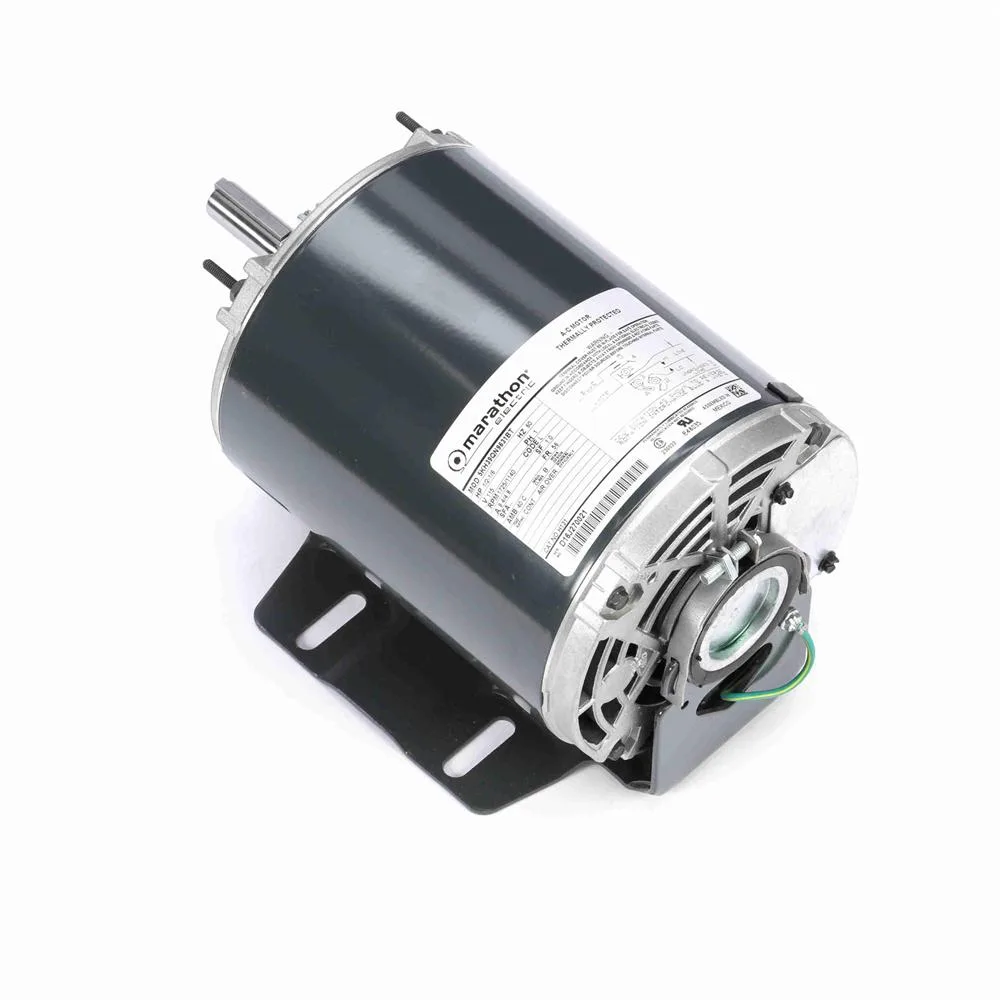

Marathon H131 Split Phase Blower Motor, 6-1/2" Dia., 1140/1725 RPM

Need a split phase blower motor? Request a quote for the Marathon H131 Split Phase Blower Motor, 6-1/2" Dia., 1140/1725 RPM. We supply Marathon motors and HVAC spare parts across Oman.

A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: Split phase. Power: 1/2, 1/6 HP. Speed: 1140/1725 RPM, 2 speeds. Voltage: 115 V, 60 Hz, single phase. Current: 8.4/4.8 A. Frame: 56. Motor diameter: 6-1/2" (165.1 mm). Shaft: 5/8" (15.88 mm) diameter, 1.88" (47.75 mm) long. Mounting: base. Part code: H131. Manufacturer model number: 5KH39QN9631T.

Before you order: four quick checks

• Match the dimensions: motor diameter 6-1/2" (165.1 mm), shaft 5/8" (15.88 mm) diameter and 1.88" (47.75 mm) long, frame 56, mounting base. Compare them with your old motor before you order.
• Check the electrical data: 1/2, 1/6 HP, 1140/1725 RPM, 115 V, 60 Hz, single phase, 8.4/4.8 A. They must match the nameplate of your old motor.
• Check the rotation and the mounting position: rotation reversible, mounting orientation any, 2 speeds.
• Isolate and lock out the power before working on a motor. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.

We supply Marathon motors and fan and blower motors to Muscat, Seeb, Bawshar and every governorate of Oman. Add this motor to your quote or message us on WhatsApp, and we will reply with the price and delivery time.
