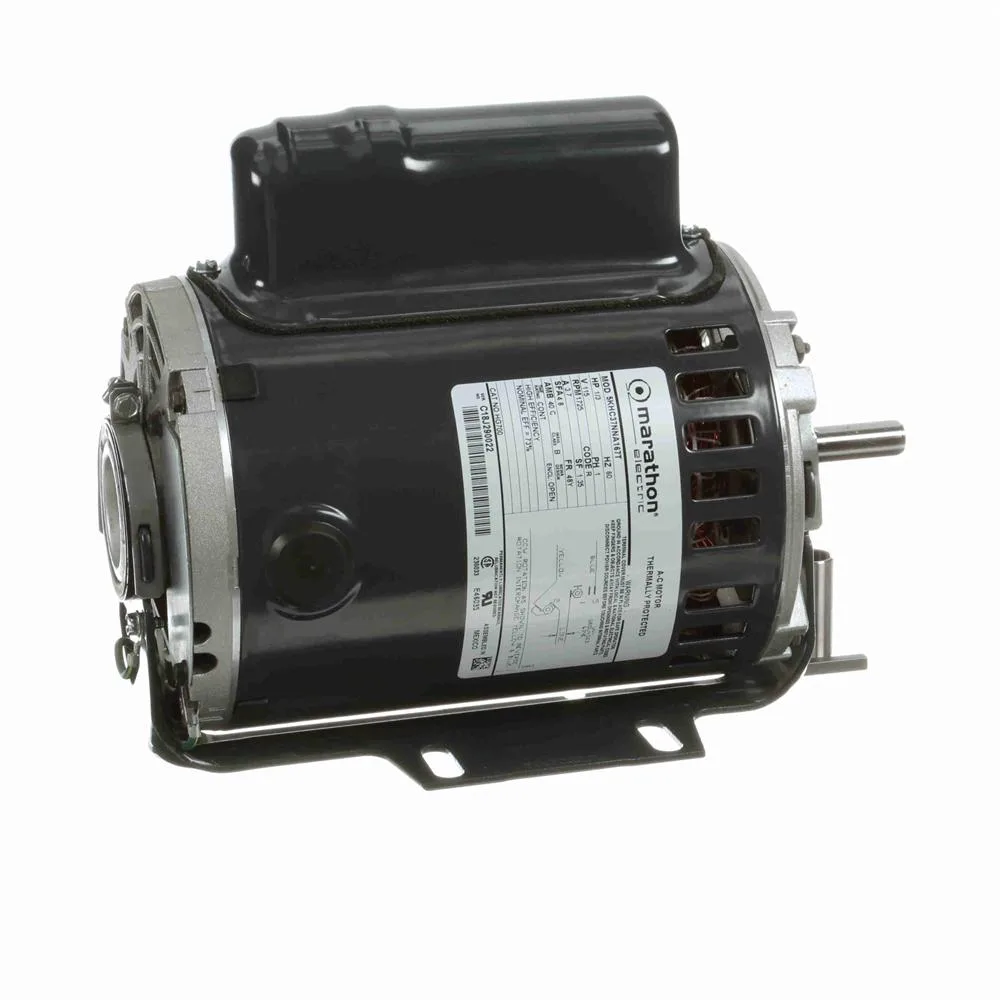

Marathon HG700 Split Phase/Capacitor Run Blower Motor, 5-5/8" Dia., 1/3 HP, 1725 RPM

Get the right motor for your equipment with the Marathon HG700 Split Phase/Capacitor Run Blower Motor, 5-5/8" Dia., 1/3 HP, 1725 RPM. This split phase start / capacitor run blower motor is part of our range of Marathon motors, and we deliver to Masirah, Salalah, Bahla and the rest of Oman.

A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: Split phase start / capacitor run. Power: 1/3 HP. Speed: 1725 RPM. Voltage: 115 V, 60 Hz, single phase. Current: 3.7 A. Frame: 48Y. Motor diameter: 5-5/8" (142.88 mm). Shaft: 1/2" (12.7 mm) diameter, 1.5" (38.1 mm) long. Mounting: base. Part code: HG700. Manufacturer model number: 5KHC37NNA167T.

Before you order: four quick checks

• Match the dimensions: motor diameter 5-5/8" (142.88 mm), shaft 1/2" (12.7 mm) diameter and 1.5" (38.1 mm) long, frame 48Y, mounting base. Compare them with your old motor before you order.
• Check the electrical data: 1/3 HP, 1725 RPM, 115 V, 60 Hz, single phase, 3.7 A. They must match the nameplate of your old motor.
• Check the rotation and the mounting position: rotation reversible, mounting orientation any, 1 speed.
• Isolate and lock out the power before working on a motor, and discharge its capacitor before you touch the terminals. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.

Our team delivers blower motors to Masirah, Salalah, Bahla and all other areas of Oman. Request a quote online or on WhatsApp. You can also browse other Marathon motors and our full range of fan and blower motors.
