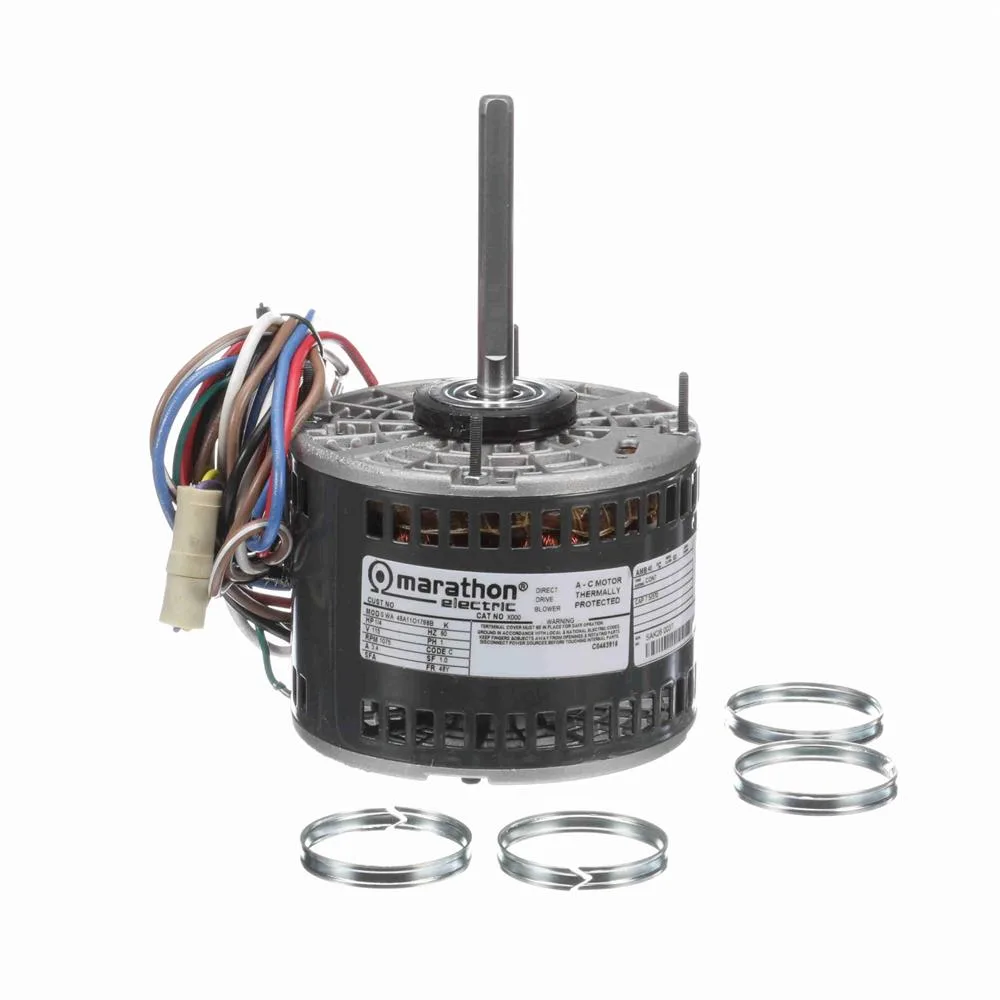

Marathon X000 PSC Direct Drive Blower Motor, 5-5/8" Dia., 1/4 HP, 1075 RPM
Marathon X000 PSC (permanent split capacitor) blower motor, 5-5/8" diameter, 1/4 HP, 1075 RPM, 115 V, single phase.
- Motor type
- PSC (permanent split capacitor)
- Power
- 1/4 HP
- Speed
- 1075 RPM
- Voltage
- 115 V
- Delivery to every governorate. Timing is confirmed with your quotation.
- Not sure it fits? Send the unit nameplate or the old part number and we will match it for you.
- Prefer to talk? Call +968 9762 8602
Description
The Marathon X000 PSC Direct Drive Blower Motor, 5-5/8" Dia., 1/4 HP, 1075 RPM is part of our range of Marathon blower motors, delivered throughout Oman.
A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: PSC (permanent split capacitor). Power: 1/4 HP. Speed: 1075 RPM, 3 speeds. Voltage: 115 V, 60 Hz, single phase. Current: 3.4 A. Frame: 48Y. Motor diameter: 5-5/8" (142.88 mm). Shaft: 1/2" (12.7 mm) diameter, 4.06" (103.12 mm) long. Mounting: base / stud. Direct drive. Part code: X000. Manufacturer model number: 048A11O1798.
Before you order: four quick checks
- Match the dimensions: motor diameter 5-5/8" (142.88 mm), shaft 1/2" (12.7 mm) diameter and 4.06" (103.12 mm) long, frame 48Y, mounting base / stud. Compare them with your old motor before you order.
- Check the electrical data: 1/4 HP, 1075 RPM, 115 V, 60 Hz, single phase, 3.4 A. They must match the nameplate of your old motor.
- Check the rotation and the mounting position: rotation reversible, mounting orientation horizontal, 3 speeds. Capacitor: 7.5 MFD, 370 VAC required.
- Isolate and lock out the power before working on a motor, and discharge its capacitor before you touch the terminals. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.
Need it delivered to Nizwa, Sohar and Bidbid, or anywhere else in Oman? Ask for a quote for this motor; we reply with the price, availability and delivery time. More fan and blower motors and Marathon motors are on the site.
Specifications
| Motor type | PSC (permanent split capacitor) |
|---|---|
| Power | 1/4 HP |
| Speed | 1075 RPM |
| Voltage | 115 V |
| Current | 3.4 A |
| Phase | 1 |
| Frequency | 60 Hz |
| Number of speeds | 3 |
| Frame | 48Y |
| Motor diameter | 5-5/8" (142.88 mm) |
| Shaft diameter | 1/2" (12.7 mm) |
| Shaft length | 4.06" (103.12 mm) |
| Motor shell length | 3.75" (95.25 mm) |
| Overall length | 9.25" (234.95 mm) |
| Mounting | Base / stud |
| Mounting orientation | Horizontal |
| Rotation | Reversible |
| Drive | Direct drive |
| Enclosure type | OAO (open air over) |
| Enclosure material | Steel |
| Bearings | Ball |
| Insulation class | Class B |
| Service factor | 1 |
| Efficiency | 55% |
| Duty cycle | Continuous |
| Maximum ambient temperature | 40 °C |
| Thermal protection | Automatic |
| Capacitor | 7.5 MFD, 370 VAC required |
| Manufacturer model number | 048A11O1798 |
| SKU | FM-099 |
| Part no. | X000 |
| Brand | Marathon |
