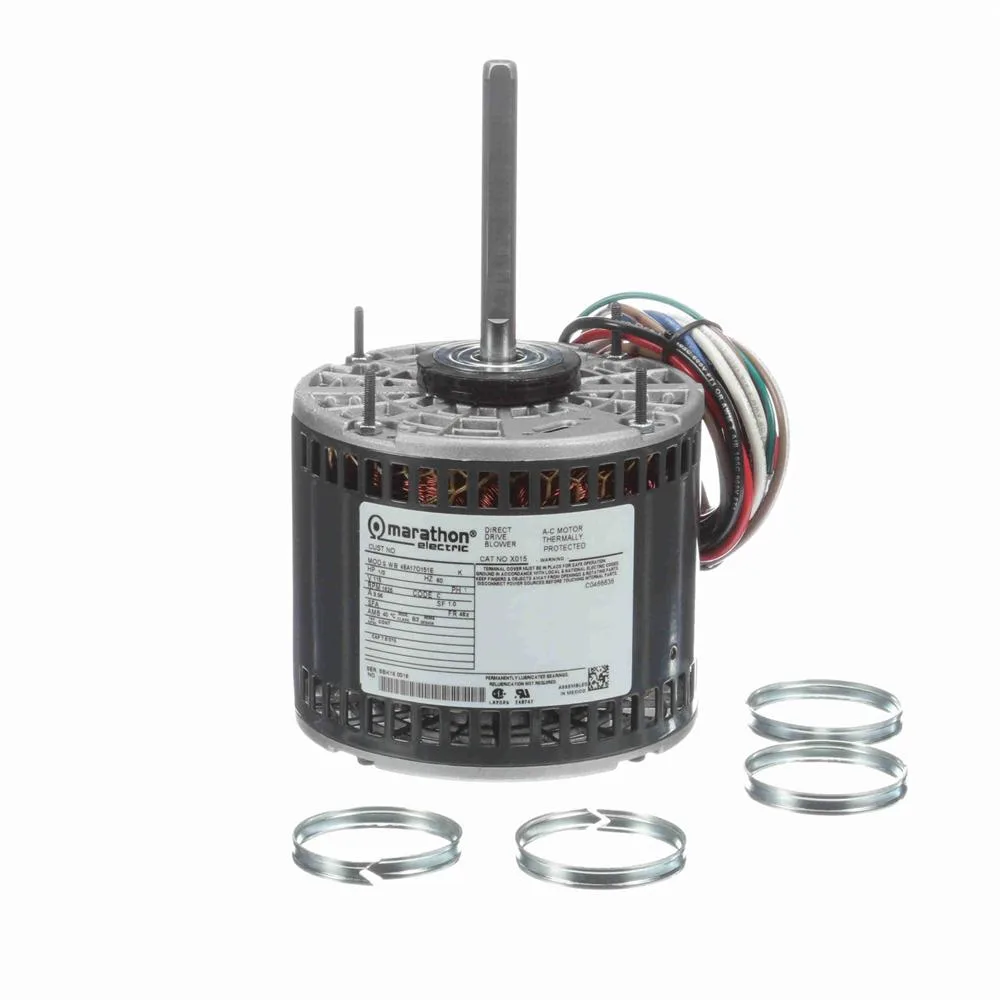

Marathon X015 PSC Direct Drive Blower Motor, 5-5/8" Dia., 1/3 HP, 1625 RPM

The right frame, shaft, speed and voltage are what matter when you replace a blower motor. If you need a PSC (permanent split capacitor) blower motor, the Marathon X015 PSC Direct Drive Blower Motor, 5-5/8" Dia., 1/3 HP, 1625 RPM is the one to ask about.

A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation.

Key details: Motor type: PSC (permanent split capacitor). Power: 1/3 HP. Speed: 1625 RPM, 3 speeds. Voltage: 115 V, 60 Hz, single phase. Current: 3.95 A. Frame: 48Z. Motor diameter: 5-5/8" (142.88 mm). Shaft: 1/2" (12.7 mm) diameter, 4.06" (103.12 mm) long. Mounting: base / stud. Direct drive. Part code: X015. Manufacturer model number: 048A17O151.

Before you order: four quick checks

• Match the dimensions: motor diameter 5-5/8" (142.88 mm), shaft 1/2" (12.7 mm) diameter and 4.06" (103.12 mm) long, frame 48Z, mounting base / stud. Compare them with your old motor before you order.
• Check the electrical data: 1/3 HP, 1625 RPM, 115 V, 60 Hz, single phase, 3.95 A. They must match the nameplate of your old motor.
• Check the rotation and the mounting position: rotation reversible, mounting orientation horizontal, 3 speeds. Capacitor: 7.5 MFD, 370 VAC required.
• Isolate and lock out the power before working on a motor, and discharge its capacitor before you touch the terminals. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.

Order from anywhere in Oman, including Mirbat, Samail and Barka. Add this motor to your quotation list and send the nameplate of your old one; we confirm availability, price and delivery. See more Marathon motors or browse all fan and blower motors.
