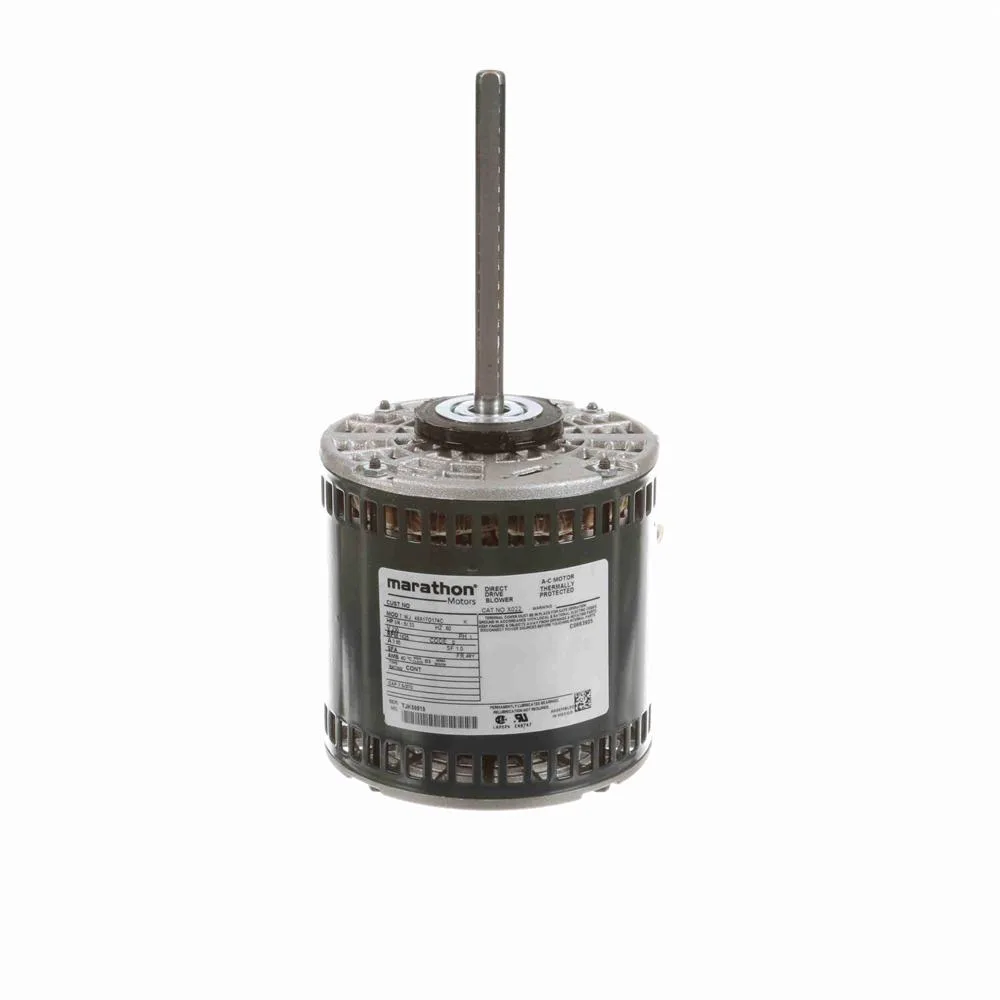

Marathon X022 PSC Direct Drive Blower Motor, 5-5/8" Dia., 3/4 HP, 1625 RPM

The right frame, shaft, speed and voltage are what matter when you replace a blower motor. If you need a PSC (permanent split capacitor) blower motor, the Marathon X022 PSC Direct Drive Blower Motor, 5-5/8" Dia., 3/4 HP, 1625 RPM is the one to ask about.

A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation.

Key details: Motor type: PSC (permanent split capacitor). Power: 3/4 HP. Speed: 1625 RPM, 3 speeds. Voltage: 230 V, 60 Hz, single phase. Current: 3.65 A. Frame: 48Y. Motor diameter: 5-5/8" (142.88 mm). Shaft: 1/2" (12.7 mm) diameter, 5.56" (141.22 mm) long. Mounting: resilient ring. Direct drive. Part code: X022. Manufacturer model number: 048A17O174.

Before you order: four quick checks

• Match the dimensions: motor diameter 5-5/8" (142.88 mm), shaft 1/2" (12.7 mm) diameter and 5.56" (141.22 mm) long, frame 48Y, mounting resilient ring. Compare them with your old motor before you order.
• Check the electrical data: 3/4 HP, 1625 RPM, 230 V, 60 Hz, single phase, 3.65 A. They must match the nameplate of your old motor.
• Check the rotation and the mounting position: rotation reversible, mounting orientation horizontal, 3 speeds. Capacitor: 7.5 MFD, 370 VAC required.
• Isolate and lock out the power before working on a motor, and discharge its capacitor before you touch the terminals. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.

Need it delivered to Haima, Muscat and Seeb, or anywhere else in Oman? Ask for a quote for this motor; we reply with the price, availability and delivery time. More fan and blower motors and Marathon motors are on the site.
