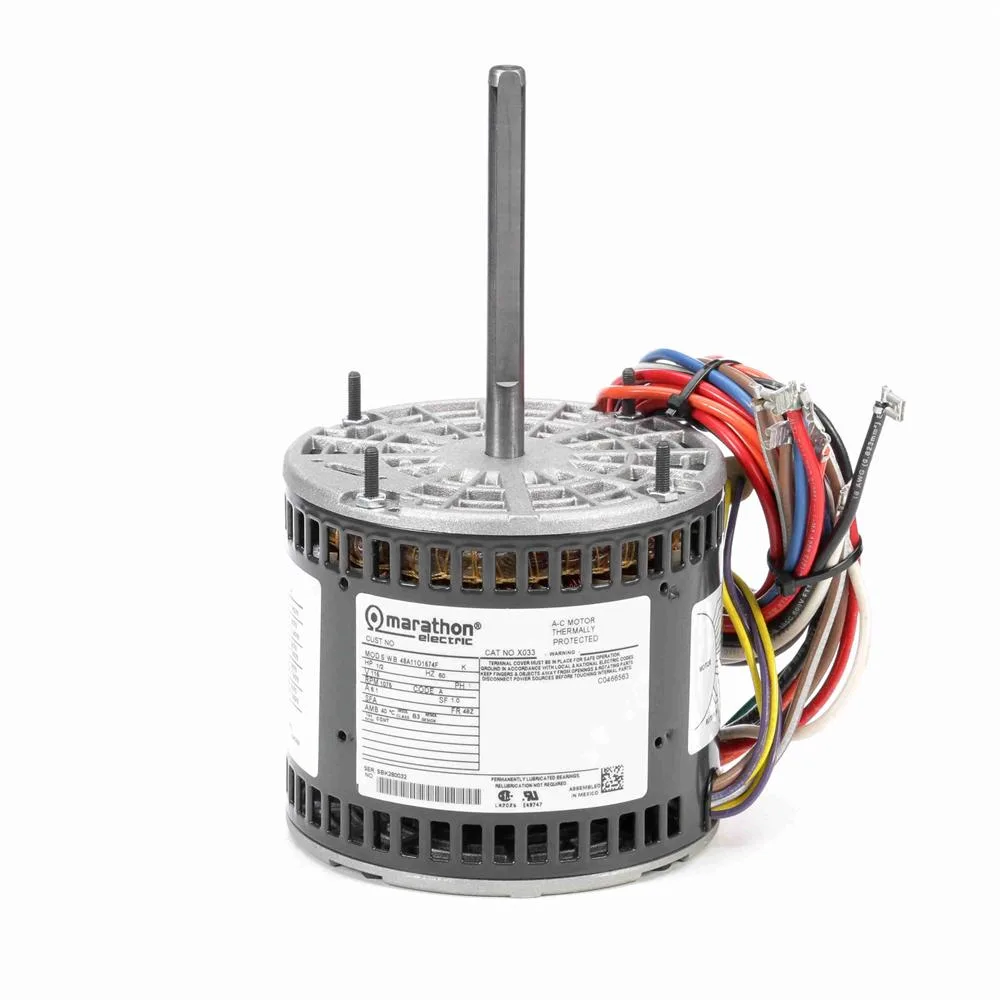

Marathon X033 PSC Direct Drive Blower Motor, 5-5/8" Dia., 1/2 HP, Rheem and Ruud OEM Replacement
Marathon X033 PSC (permanent split capacitor) blower motor, 5-5/8" diameter, 1/2 HP, 1075 RPM, 115 V, single phase.
- Motor type
- PSC (permanent split capacitor)
- Power
- 1/2 HP
- Speed
- 1075 RPM
- Voltage
- 115 V
- Delivery to every governorate. Timing is confirmed with your quotation.
- Not sure it fits? Send the unit nameplate or the old part number and we will match it for you.
- Prefer to talk? Call +968 9762 8602
Description
Need a PSC (permanent split capacitor) blower motor? Request a quote for the Marathon X033 PSC Direct Drive Blower Motor, 5-5/8" Dia., 1/2 HP, Rheem and Ruud OEM Replacement. We supply Marathon motors and HVAC spare parts across Oman.
A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: PSC (permanent split capacitor). Power: 1/2 HP. Speed: 1075 RPM, 4 speeds. Voltage: 115 V, 60 Hz, single phase. Current: 6.1 A. Frame: 48Z. Motor diameter: 5-5/8" (142.88 mm). Shaft: 1/2" (12.7 mm) diameter, 5" (127 mm) long. Mounting: stud. Direct drive. Part code: X033. Manufacturer model number: 048A11O1674. Listed as an OEM replacement for Rheem and Ruud.
Before you order: four quick checks
- Match the dimensions: motor diameter 5-5/8" (142.88 mm), shaft 1/2" (12.7 mm) diameter and 5" (127 mm) long, frame 48Z, mounting stud. Compare them with your old motor before you order.
- Check the electrical data: 1/2 HP, 1075 RPM, 115 V, 60 Hz, single phase, 6.1 A. They must match the nameplate of your old motor.
- Check the rotation and the mounting position: rotation reversible, mounting orientation horizontal, 4 speeds. Capacitor: 5 MFD, 370 VAC required.
- Isolate and lock out the power before working on a motor, and discharge its capacitor before you touch the terminals. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.
Our team delivers blower motors to Samail, Barka, Khasab and all other areas of Oman. Request a quote online or on WhatsApp. You can also browse other Marathon motors and our full range of fan and blower motors.
Specifications
| Motor type | PSC (permanent split capacitor) |
|---|---|
| Power | 1/2 HP |
| Speed | 1075 RPM |
| Voltage | 115 V |
| Current | 6.1 A |
| Phase | 1 |
| Frequency | 60 Hz |
| Number of speeds | 4 |
| Frame | 48Z |
| Motor diameter | 5-5/8" (142.88 mm) |
| Shaft diameter | 1/2" (12.7 mm) |
| Shaft length | 5" (127 mm) |
| Motor shell length | 4.5" (114.3 mm) |
| Overall length | 10" (254 mm) |
| Mounting | Stud |
| Mounting orientation | Horizontal |
| Rotation | Reversible |
| Drive | Direct drive |
| Enclosure type | OAO (open air over) |
| Enclosure material | Steel |
| Bearings | Ball |
| Insulation class | Class B |
| Service factor | 1 |
| Efficiency | 64% |
| Duty cycle | Continuous |
| Maximum ambient temperature | 40 °C |
| Thermal protection | Automatic |
| Capacitor | 5 MFD, 370 VAC required |
| Manufacturer model number | 048A11O1674 |
| SKU | FM-052 |
| Part no. | X033 |
| Brand | Marathon |
Compatibility
Listed as an OEM replacement for Rheem and Ruud.
