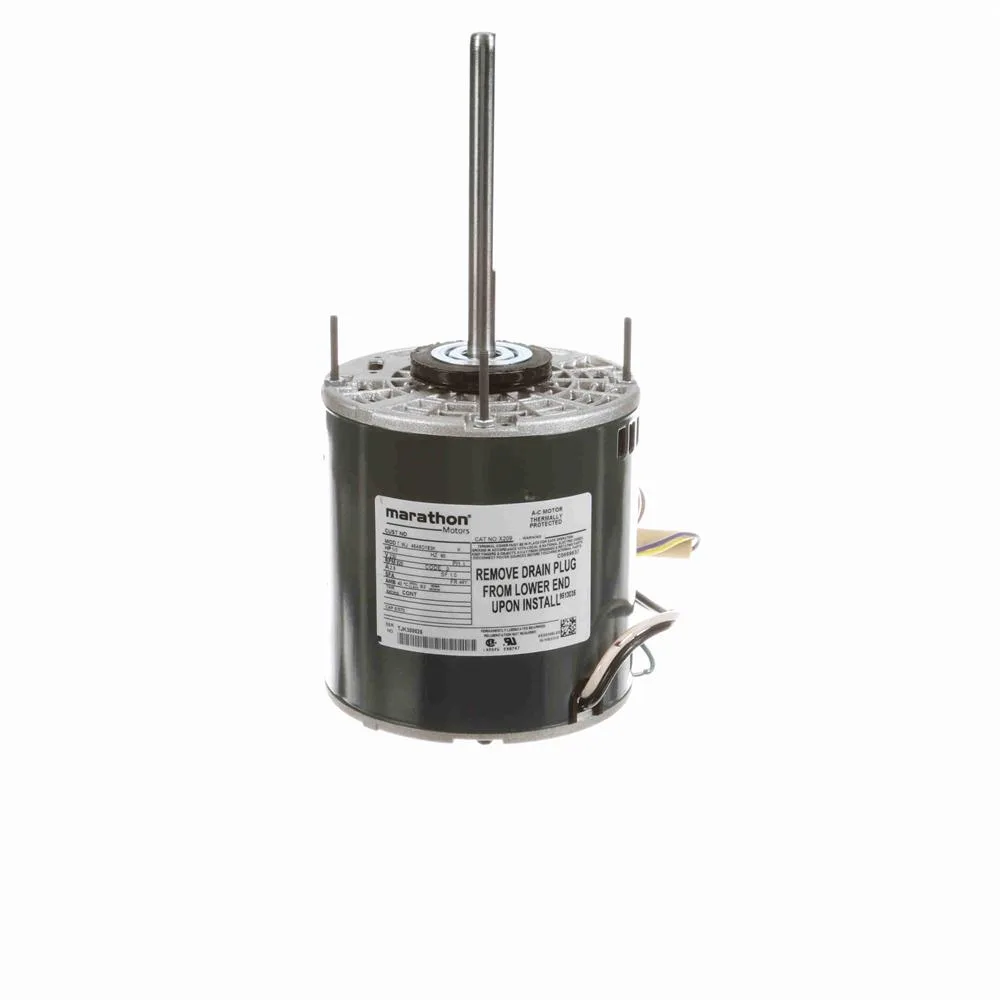

Marathon X209 PSC Direct Drive Blower Motor, 5-5/8" Dia., 1/3 HP, 825 RPM, Lennox OEM Replacement

Get the right motor for your equipment with the Marathon X209 PSC Direct Drive Blower Motor, 5-5/8" Dia., 1/3 HP, 825 RPM, Lennox OEM Replacement. This PSC (permanent split capacitor) blower motor is part of our range of Marathon motors, and we deliver to Duqm, Mirbat, Samail and the rest of Oman.

A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: PSC (permanent split capacitor). Power: 1/3 HP. Speed: 825 RPM. Voltage: 230 V, 60 Hz, single phase. Current: 2.8 A. Frame: 48Y. Motor diameter: 5-5/8" (142.88 mm). Shaft: 1/2" (12.7 mm) diameter, 5.53" (140.46 mm) long. Mounting: resilient ring / stud. Direct drive. Part code: X209. Manufacturer model number: 048A8O183. Listed as an OEM replacement for Lennox.

Before you order: four quick checks

• Match the dimensions: motor diameter 5-5/8" (142.88 mm), shaft 1/2" (12.7 mm) diameter and 5.53" (140.46 mm) long, frame 48Y, mounting resilient ring / stud. Compare them with your old motor before you order.
• Check the electrical data: 1/3 HP, 825 RPM, 230 V, 60 Hz, single phase, 2.8 A. They must match the nameplate of your old motor.
• Check the rotation and the mounting position: rotation reversible, mounting orientation horizontal, 1 speed. Capacitor: 5 MFD, 370 VAC required.
• Isolate and lock out the power before working on a motor, and discharge its capacitor before you touch the terminals. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.

We supply Marathon motors and fan and blower motors to Duqm, Mirbat, Samail and every governorate of Oman. Add this motor to your quote or message us on WhatsApp, and we will reply with the price and delivery time.
