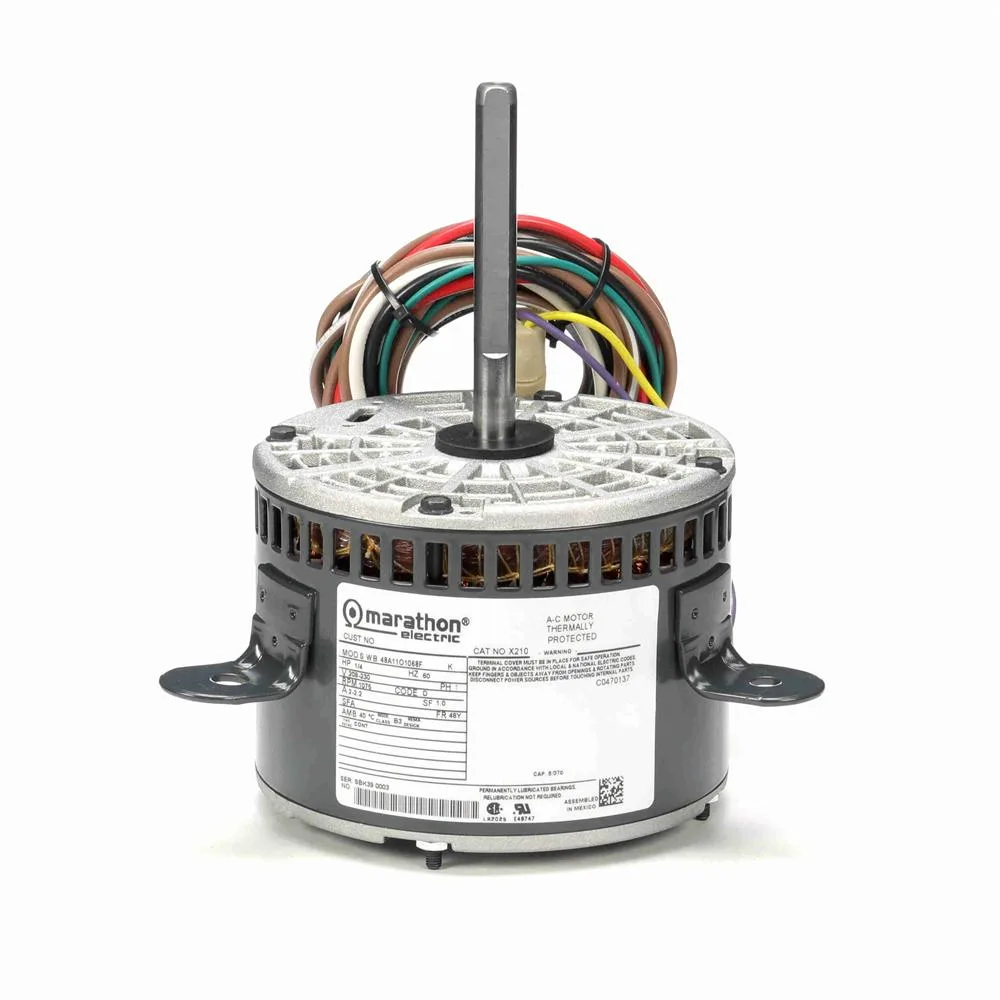

Marathon X210 PSC Blower Motor, 5-5/8" Dia., 1/4 HP, 1075 RPM, Carrier OEM Replacement
Marathon X210 PSC (permanent split capacitor) blower motor, 5-5/8" diameter, 1/4 HP, 1075 RPM, 208/230 V, single phase.
- Motor type
- PSC (permanent split capacitor)
- Power
- 1/4 HP
- Speed
- 1075 RPM
- Voltage
- 208/230 V
- Delivery to every governorate. Timing is confirmed with your quotation.
- Not sure it fits? Send the unit nameplate or the old part number and we will match it for you.
- Prefer to talk? Call +968 9762 8602
Description
Get the right motor for your equipment with the Marathon X210 PSC Blower Motor, 5-5/8" Dia., 1/4 HP, 1075 RPM, Carrier OEM Replacement. This PSC (permanent split capacitor) blower motor is part of our range of Marathon motors, and we deliver to Masirah, Salalah, Bahla and the rest of Oman.
A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: PSC (permanent split capacitor). Power: 1/4 HP. Speed: 1075 RPM, 2 speeds. Voltage: 208/230 V, 60 Hz, single phase. Current: 2-2.2 A. Frame: 48Y. Motor diameter: 5-5/8" (142.88 mm). Shaft: 1/2" (12.7 mm) diameter, 4.31" (109.47 mm) long. Mounting: bracket. Part code: X210. Manufacturer model number: 048A11O1068. Listed as an OEM replacement for Carrier.
Before you order: four quick checks
- Match the dimensions: motor diameter 5-5/8" (142.88 mm), shaft 1/2" (12.7 mm) diameter and 4.31" (109.47 mm) long, frame 48Y, mounting bracket. Compare them with your old motor before you order.
- Check the electrical data: 1/4 HP, 1075 RPM, 208/230 V, 60 Hz, single phase, 2-2.2 A. They must match the nameplate of your old motor.
- Check the rotation and the mounting position: rotation reversible, mounting orientation horizontal, 2 speeds. Capacitor: 5 MFD, 370 VAC required.
- Isolate and lock out the power before working on a motor, and discharge its capacitor before you touch the terminals. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.
Our team delivers blower motors to Masirah, Salalah, Bahla and all other areas of Oman. Request a quote online or on WhatsApp. You can also browse other Marathon motors and our full range of fan and blower motors.
Specifications
| Motor type | PSC (permanent split capacitor) |
|---|---|
| Power | 1/4 HP |
| Speed | 1075 RPM |
| Voltage | 208/230 V |
| Current | 2-2.2 A |
| Phase | 1 |
| Frequency | 60 Hz |
| Number of speeds | 2 |
| Frame | 48Y |
| Motor diameter | 5-5/8" (142.88 mm) |
| Shaft diameter | 1/2" (12.7 mm) |
| Shaft length | 4.31" (109.47 mm) |
| Motor shell length | 3.62" (91.95 mm) |
| Overall length | 8.44" (214.38 mm) |
| Mounting | Bracket |
| Mounting orientation | Horizontal |
| Rotation | Reversible |
| Enclosure type | OAO (open air over) |
| Enclosure material | Steel |
| Bearings | Ball |
| Insulation class | Class B |
| Service factor | 1 |
| Efficiency | 54.4% |
| Duty cycle | Continuous |
| Maximum ambient temperature | 40 °C |
| Thermal protection | Automatic |
| Capacitor | 5 MFD, 370 VAC required |
| Manufacturer model number | 048A11O1068 |
| SKU | FM-108 |
| Part no. | X210 |
| Brand | Marathon |
Compatibility
Listed as an OEM replacement for Carrier.
OEM and cross-reference numbers
