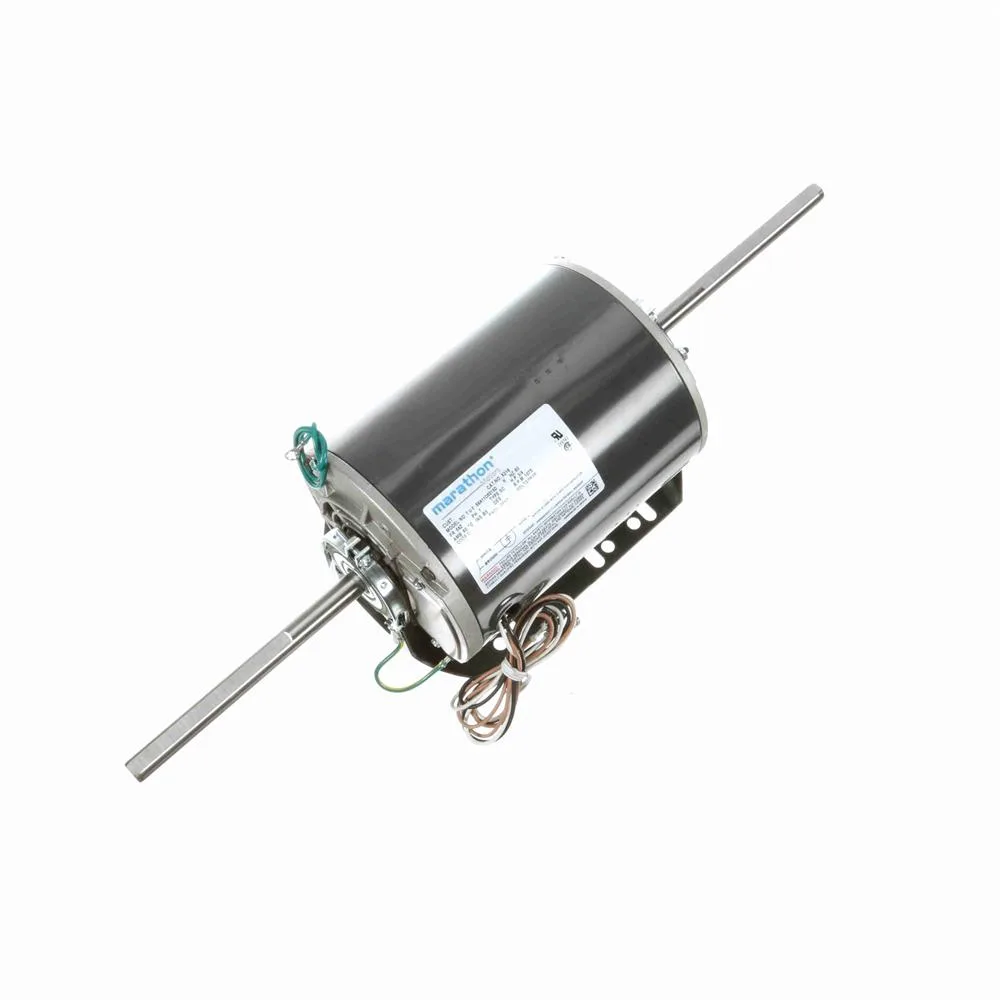

Marathon X218 Double Shafted Blower Motor, 6-1/2" Dia., 3/4 HP, Sears and Whirlpool OEM Replacement

The Marathon X218 Double Shafted Blower Motor, 6-1/2" Dia., 3/4 HP, Sears and Whirlpool OEM Replacement is part of our range of Marathon blower motors, delivered throughout Oman.

A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: PSC (permanent split capacitor). Power: 3/4 HP. Speed: 1075 RPM. Voltage: 208/230 V, 60 Hz, single phase. Current: 3.9-3.6 A. Frame: 56Z. Motor diameter: 6-1/2" (165.1 mm). Shaft: 5/8" (15.88 mm) diameter, 6.91" x 6.91" (175.51 x 175.51 mm) long. Mounting: base. Double shafted. Part code: X218. Manufacturer model number: 056A11O5313. Listed as an OEM replacement for Sears and Whirlpool.

Before you order: four quick checks

• Match the dimensions: motor diameter 6-1/2" (165.1 mm), shaft 5/8" (15.88 mm) diameter and 6.91" x 6.91" (175.51 x 175.51 mm) long, frame 56Z, mounting base. Compare them with your old motor before you order.
• Check the electrical data: 3/4 HP, 1075 RPM, 208/230 V, 60 Hz, single phase, 3.9-3.6 A. They must match the nameplate of your old motor.
• Check the rotation and the mounting position: a double shafted motor, mounting orientation horizontal, 1 speed. Capacitor: 15 MFD, 370 VAC required.
• Isolate and lock out the power before working on a motor, and discharge its capacitor before you touch the terminals. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.

Need it delivered to Nizwa, Sohar and Bidbid, or anywhere else in Oman? Ask for a quote for this motor; we reply with the price, availability and delivery time. More fan and blower motors and Marathon motors are on the site.
