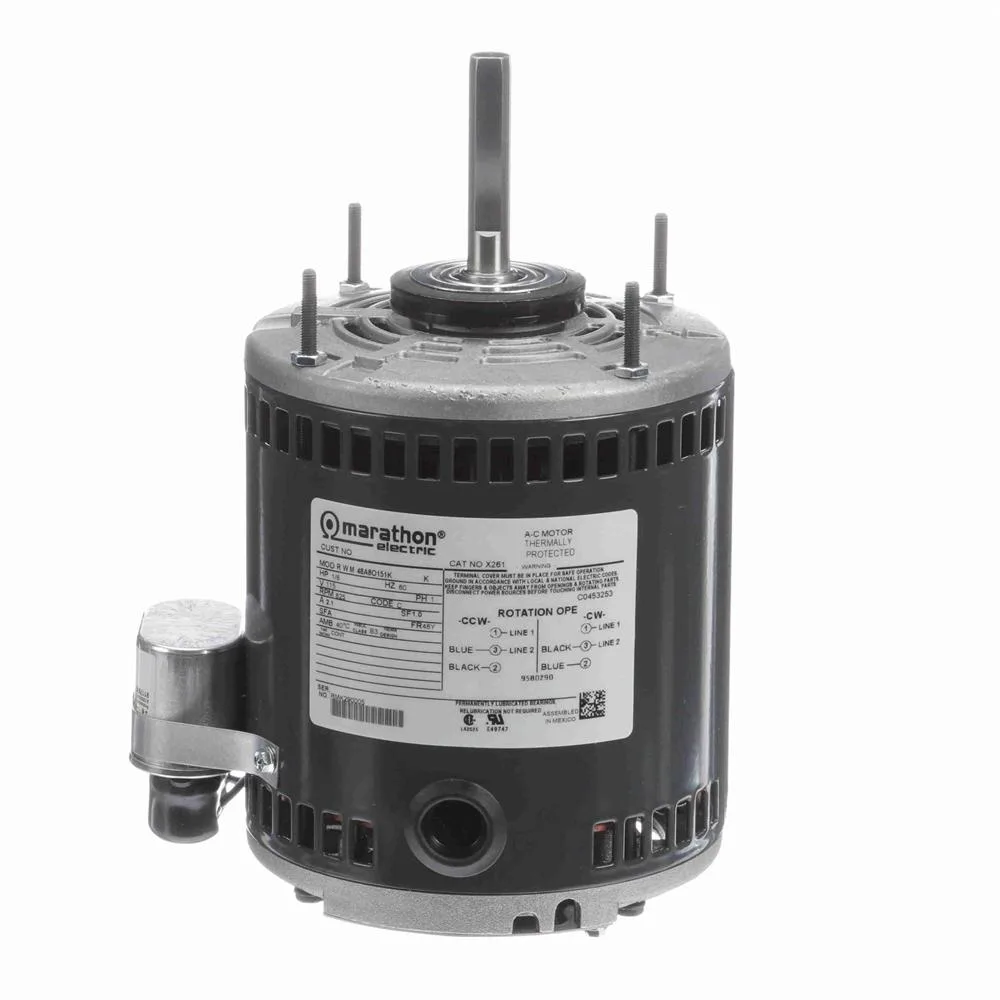

Marathon X261 PSC Blower Motor, 5-5/8" Dia., 1/8 HP, 825 RPM, Greenheck OEM Replacement

The right frame, shaft, speed and voltage are what matter when you replace a blower motor. If you need a PSC (permanent split capacitor) blower motor, the Marathon X261 PSC Blower Motor, 5-5/8" Dia., 1/8 HP, 825 RPM, Greenheck OEM Replacement is the one to ask about.

A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation.

Key details: Motor type: PSC (permanent split capacitor). Power: 1/8 HP. Speed: 825 RPM. Voltage: 115 V, 60 Hz, single phase. Current: 2.1 A. Frame: 48Y. Motor diameter: 5-5/8" (142.88 mm). Shaft: 1/2" (12.7 mm) diameter, 2.59" (65.79 mm) long. Mounting: resilient ring / stud. Part code: X261. Manufacturer model number: 048A8O151. Listed as an OEM replacement for Greenheck.

Before you order: four quick checks

• Match the dimensions: motor diameter 5-5/8" (142.88 mm), shaft 1/2" (12.7 mm) diameter and 2.59" (65.79 mm) long, frame 48Y, mounting resilient ring / stud. Compare them with your old motor before you order.
• Check the electrical data: 1/8 HP, 825 RPM, 115 V, 60 Hz, single phase, 2.1 A. They must match the nameplate of your old motor.
• Check the rotation and the mounting position: rotation reversible, mounting orientation horizontal, 1 speed. Capacitor: included.
• Isolate and lock out the power before working on a motor, and discharge its capacitor before you touch the terminals. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.

Need it delivered to Haima, Muscat and Seeb, or anywhere else in Oman? Ask for a quote for this motor; we reply with the price, availability and delivery time. More fan and blower motors and Marathon motors are on the site.
