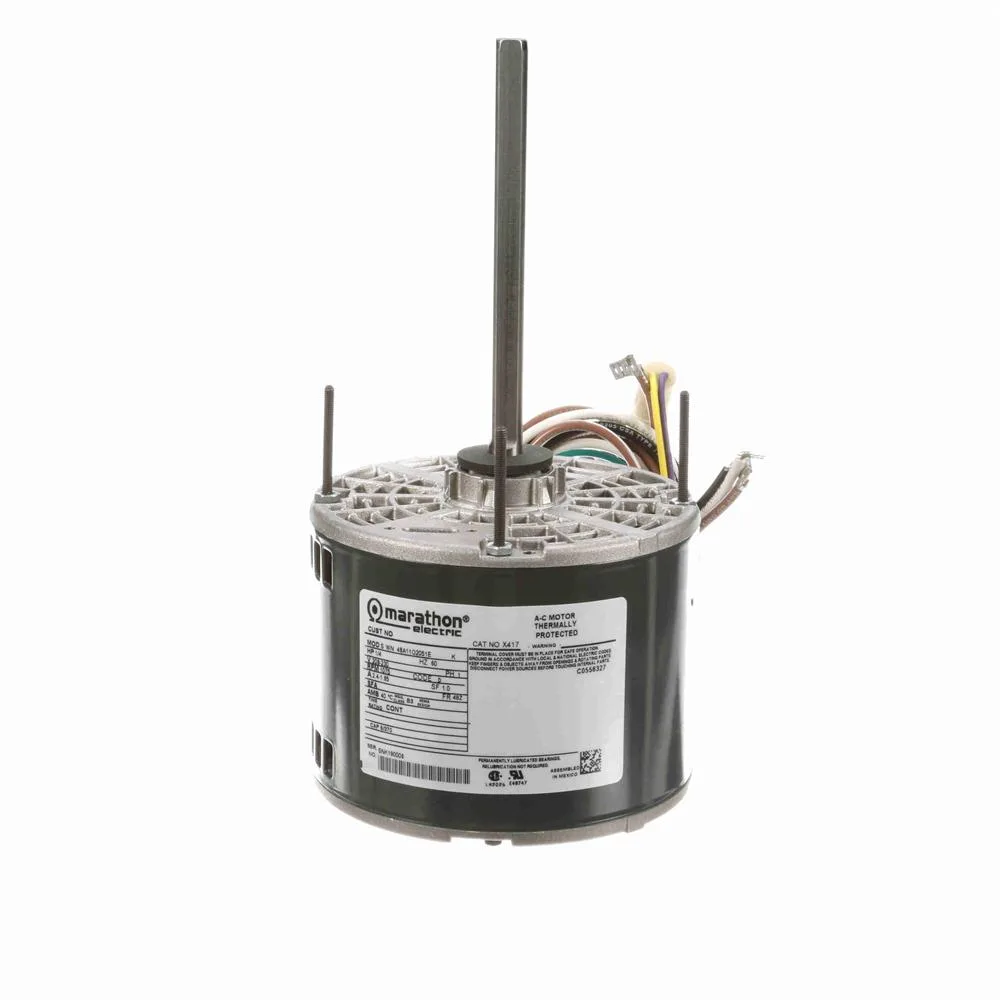

Marathon X417 PSC Direct Drive Blower Motor, 5-5/8" Dia., 1/4 HP, 1075 RPM
Marathon X417 PSC (permanent split capacitor) blower motor, 5-5/8" diameter, 1/4 HP, 1075 RPM, 208/230 V, single phase.
- Motor type
- PSC (permanent split capacitor)
- Power
- 1/4 HP
- Speed
- 1075 RPM
- Voltage
- 208/230 V
- Delivery to every governorate. Timing is confirmed with your quotation.
- Not sure it fits? Send the unit nameplate or the old part number and we will match it for you.
- Prefer to talk? Call +968 9762 8602
Description
Looking for a PSC (permanent split capacitor) blower motor? The Marathon X417 PSC Direct Drive Blower Motor, 5-5/8" Dia., 1/4 HP, 1075 RPM is available through our online quotation service anywhere in Oman.
A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: PSC (permanent split capacitor). Power: 1/4 HP. Speed: 1075 RPM. Voltage: 208/230 V, 60 Hz, single phase. Current: 2.4-1.85 A. Frame: 48Z. Motor diameter: 5-5/8" (142.88 mm). Shaft: 1/2" (12.7 mm) diameter, 6.06" (153.92 mm) long. Mounting: stud. Direct drive. Part code: X417. Manufacturer model number: 048A11O2051.
Before you order: four quick checks
- Match the dimensions: motor diameter 5-5/8" (142.88 mm), shaft 1/2" (12.7 mm) diameter and 6.06" (153.92 mm) long, frame 48Z, mounting stud. Compare them with your old motor before you order.
- Check the electrical data: 1/4 HP, 1075 RPM, 208/230 V, 60 Hz, single phase, 2.4-1.85 A. They must match the nameplate of your old motor.
- Check the rotation and the mounting position: rotation reversible, mounting orientation horizontal, 1 speed. Capacitor: 5 MFD, 370 VAC required.
- Isolate and lock out the power before working on a motor, and discharge its capacitor before you touch the terminals. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.
Need it delivered to Sur, Duqm and Mirbat, or anywhere else in Oman? Ask for a quote for this motor; we reply with the price, availability and delivery time. More fan and blower motors and Marathon motors are on the site.
Specifications
| Motor type | PSC (permanent split capacitor) |
|---|---|
| Power | 1/4 HP |
| Speed | 1075 RPM |
| Voltage | 208/230 V |
| Current | 2.4-1.85 A |
| Phase | 1 |
| Frequency | 60 Hz |
| Number of speeds | 1 |
| Frame | 48Z |
| Motor diameter | 5-5/8" (142.88 mm) |
| Shaft diameter | 1/2" (12.7 mm) |
| Shaft length | 6.06" (153.92 mm) |
| Motor shell length | 3.75" (95.25 mm) |
| Overall length | 11.19" (284.23 mm) |
| Mounting | Stud |
| Mounting orientation | Horizontal |
| Rotation | Reversible |
| Drive | Direct drive |
| Enclosure type | OAO (open air over) |
| Enclosure material | Steel |
| Bearings | Ball |
| Insulation class | Class B |
| Service factor | 1 |
| Efficiency | 59.4% |
| Duty cycle | Continuous |
| Maximum ambient temperature | 40 °C |
| Thermal protection | Automatic |
| Capacitor | 5 MFD, 370 VAC required |
| Manufacturer model number | 048A11O2051 |
| SKU | FM-067 |
| Part no. | X417 |
| Brand | Marathon |
