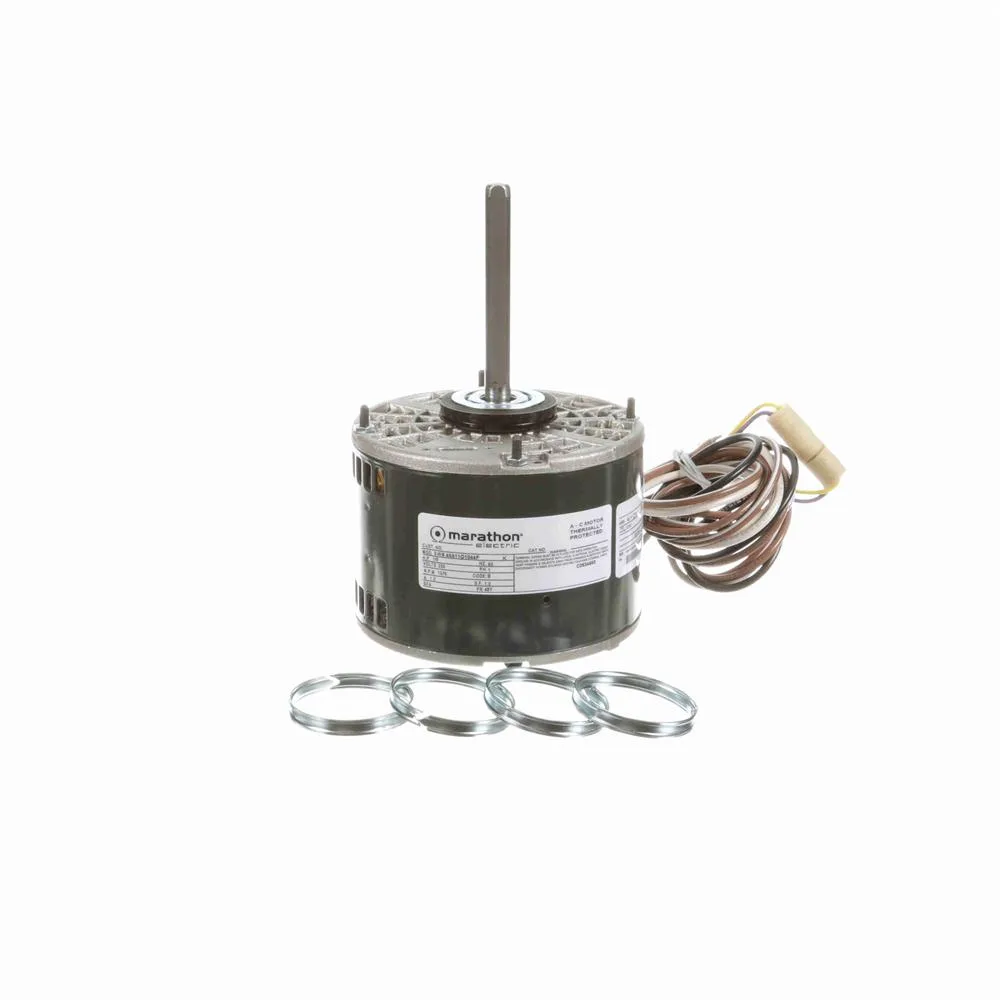

Marathon X471 PSC Direct Drive Blower Motor, 5-5/8" Dia., 1/6 HP, 1075 RPM

The Marathon X471 PSC Direct Drive Blower Motor, 5-5/8" Dia., 1/6 HP, 1075 RPM is part of our range of Marathon blower motors, delivered throughout Oman.

A blower motor drives the fan or blower wheel that moves air through the equipment, so a replacement must match the old motor in size, speed, voltage and rotation. Motor type: PSC (permanent split capacitor). Power: 1/6 HP. Speed: 1075 RPM. Voltage: 230 V, 60 Hz, single phase. Current: 1.3 A. Frame: 48Y. Motor diameter: 5-5/8" (142.88 mm). Shaft: 1/2" (12.7 mm) diameter, 4.06" (103.12 mm) long. Mounting: resilient ring. Direct drive. Part code: X471. Manufacturer model number: 048A11O1044.

Before you order: four quick checks

• Match the dimensions: motor diameter 5-5/8" (142.88 mm), shaft 1/2" (12.7 mm) diameter and 4.06" (103.12 mm) long, frame 48Y, mounting resilient ring. Compare them with your old motor before you order.
• Check the electrical data: 1/6 HP, 1075 RPM, 230 V, 60 Hz, single phase, 1.3 A. They must match the nameplate of your old motor.
• Check the rotation and the mounting position: rotation reversible, mounting orientation horizontal, 1 speed. Capacitor: not included; use the existing capacitor in the application.
• Isolate and lock out the power before working on a motor, and discharge its capacitor before you touch the terminals. Send a photo of the nameplate of the old motor on WhatsApp and we confirm the match.

Need it delivered to Barka, Khasab and Rustaq, or anywhere else in Oman? Ask for a quote for this motor; we reply with the price, availability and delivery time. More fan and blower motors and Marathon motors are on the site.
