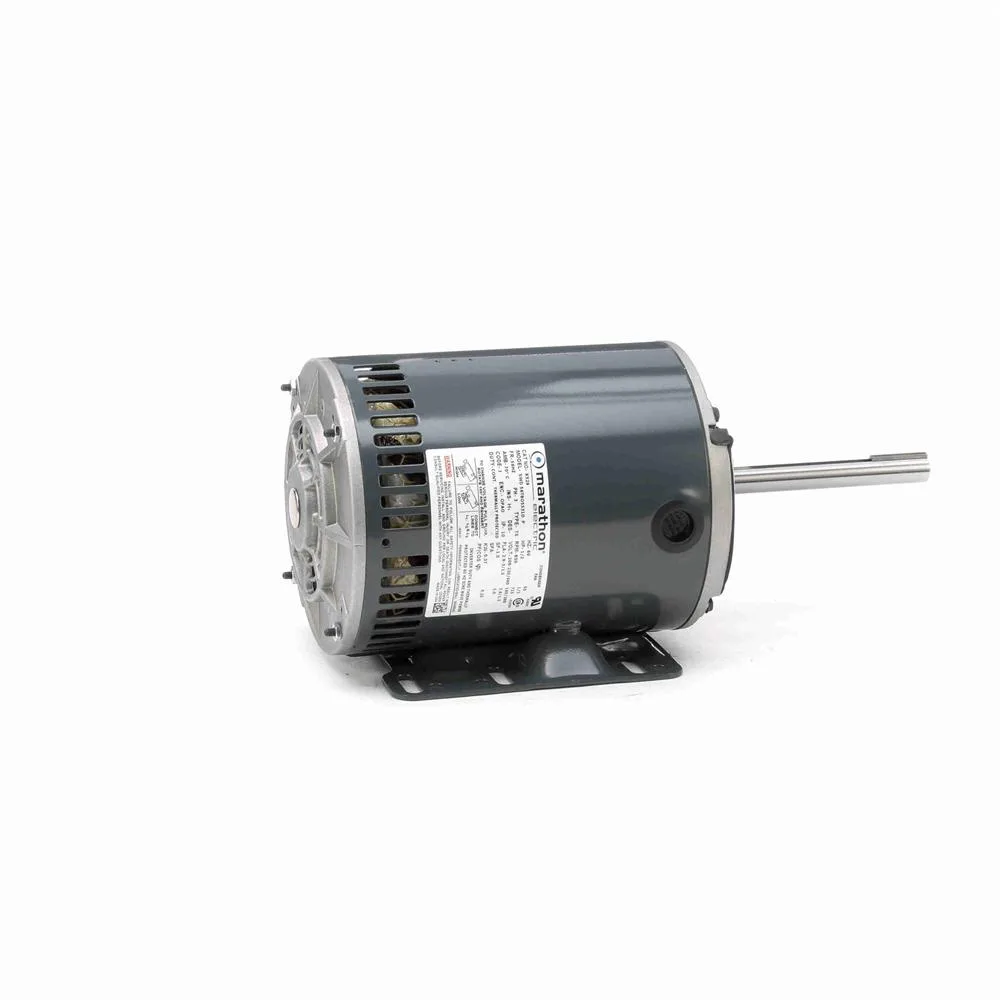

Marathon X529 6-1/2" Diameter Commercial Condenser Fan/Heat Pump/Refrigeration Fan Motor
Marathon X529 three phase commercial condenser fan, heat pump and refrigeration fan motor, 6-1/2" diameter, 1/2 HP, 850 RPM, 208 / 230 / 460 V.
- Motor type
- Three Phase
- Power
- 1/2 HP
- Speed
- 850 RPM
- Voltage
- 208 / 230 / 460 V
- Delivery to every governorate. Timing is confirmed with your quotation.
- Not sure it fits? Send the unit nameplate or the old part number and we will match it for you.
- Prefer to talk? Call +968 9762 8602
Description
Add the Marathon X529 6-1/2" Diameter Commercial Condenser Fan/Heat Pump/Refrigeration Fan Motor to your quote. Tell us the quantity and we will confirm availability and delivery before you order.
Marathon X529 is a three phase commercial condenser fan, heat pump and refrigeration fan motor, 6-1/2" diameter.
Key details: Power: 1/2 HP. Speed: 850 RPM. Voltage: 208 / 230 / 460 V. Current: 2.9-3/1.5 A. Phase: 3. Frequency: 60 Hz. Rotation: Reversible. Enclosure: OAO (Open Air Over).
Before you order: four quick checks
- Match the model number: compare the number on your old motor with X529.
- Match the size: this motor is listed with motor diameter 6-1/2", shaft diameter 5/8" and shaft length 5.06"; measure your old motor and compare.
- Match the electrical data: this motor is listed with voltage 208 / 230 / 460 V, phase 3, speed 850 RPM and rotation Reversible. A motor that turns the wrong way blows the air the wrong way, so note the rotation of the old motor before you remove it.
- Isolate and lock off the power before you replace a motor, and have the wiring done by a qualified person. Send us the model number or a photo of the old motor on WhatsApp and we confirm the match.
Our team delivers motors to Quriyat, Sur, Duqm and all other areas of Oman. Request a quote online or on WhatsApp. You can also browse other Marathon products and our full range of refrigeration motors.
Specifications
| Motor type | Three Phase |
|---|---|
| Power | 1/2 HP |
| Speed | 850 RPM |
| Voltage | 208 / 230 / 460 V |
| Current | 2.9-3/1.5 A |
| Phase | 3 |
| Frequency | 60 Hz |
| Rotation | Reversible |
| Enclosure | OAO (Open Air Over) |
| Bearings | Ball |
| Frame | 56HZ |
| Motor diameter | 6-1/2" |
| Motor shell length | 7.56" |
| Overall length | 14.68" |
| Shaft diameter | 5/8" |
| Shaft length | 5.06" |
| Mounting | Base |
| Mounting orientation | Horizontal |
| Thermal protection | Automatic |
| Number of speeds | 1 |
| Duty cycle | Continuous |
| Insulation class | H |
| Maximum ambient temperature | 70° C |
| Service factor | 1 |
| Efficiency | 0.65 |
| Enclosure material | Steel |
| Manufacturer model number | 056T8O5531 |
| SKU | RM-056 |
| Part no. | X529 |
| Brand | Marathon |
